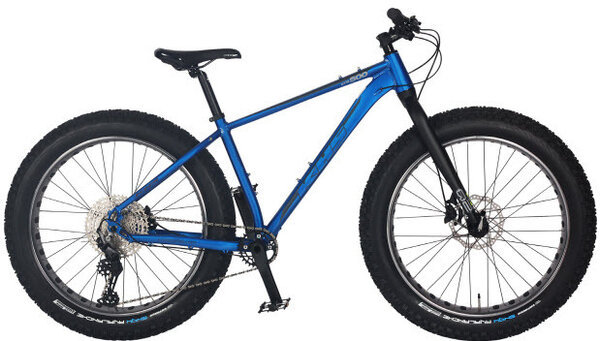

KHS 4 Season 500 Fat Bike

KHS 4 Season 500 Fat Bike
$1,299.00 - $1,299.99
Size: Select size
Please select options Unavailable
This manufacturer currently prefers that we only sell this item in our retail store. Please visit us soon.

Details

Fat Bikes go where no other bike dares. Sand Snow Dirt...

Frame 6061 Aluminum w/Custom Formed T/T & D/T, Replaceable Derailleur Hanger, 1.5 taper, 10x190mm, Internal Cable Routing
Fork Aluminum Straight Blade, 1,5 Taper, 15mm x 150 Thru-Axle or Manitou Mastodon Pro 100mm or Carbon Fork Option
Headset Threadless 1-1/8~1.5 Tapered, Zero Stack
Rims Aluminum 80mm w/Rectangular holes, 26x32H
Hub, Front KT Aluminum Disc, Forged, Sealed Bearing, 15mm Thru-Axle 15x150
Hub, Rear KT Aluminum Disc Forged Sealed Bearing, Cassette, QR, 190mm
Tires Vee Avalanche, 26 x 4.8”, 72TPI
Spokes 14G Black, 32x32
Derailleur, Front n/a
Derailleur, Rear Shimano Deore RD-M5100
Shifter Shimano Deore SL-M5100 Trigger, Right Only
Chain KMC X11 w/MissingLink
Crankset Samox 2-pc Forged, 30T Narrow Wide Chainring
BB Outboard Cartridge Bearing
Cassette Shimano CS-M5100-11, 11/51T, 11-Speed
Pedals Wellgo Aluminum Platform w/DU Bearings
Seatpost KHS Aluminum Micro-Adjust, 31.6mm x 350mm
Saddle KHS Sport Dual Density Padding w/Handle
Handlebar Aluminum 35mm Riser, 760 x 15mm
Stem Aluminum 3D Forged, Threadless 4-bolt, 35mm, S=60mm, M-XL=70mm
Grips Q2 Lock-on
Brake Levers Shimano MT200
Brakes Shimano MT200 Hydraulic Disc, 180/160mm Rotors Wave ‘12’
Color Black
Frame Size S/15, M/17, L/19, XL/21

Part Numbers

Option UPC MPN Store SKU
15 756928936920 756928936920 210000037636
17 756928936937 756928936937 210000037639
19 756928936944 756928936944 210000037641
21 756928936951 756928936951 756928936951
