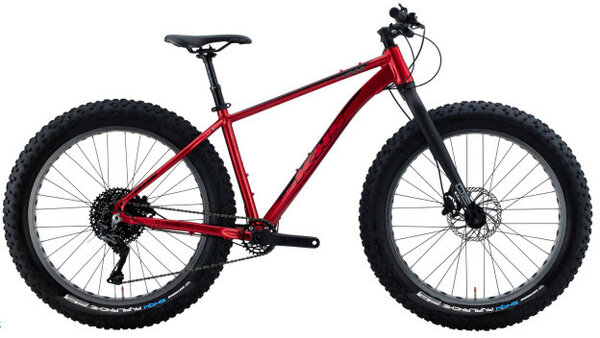

KHS 4 Season 1000 Fat Bike

Fat bikes go where no other bikes dare. Sand Snow Dirt...

12 Speed
Shimano Deore
Aluminum tubeless ready wheel
KS9-00i dropper post
NEW OR CHANGED FOR 2021
Vee Avalanche tires
Shimano Deore 12 speed rear derailleur
Shimano Deore shifter
Shimano CN-M6100 chain
30 tooth chainring
Shimano CS-M6100, 10-51T cassette
Shimano M4100 brake levers
MSRP: Manitou: $1899-1999
Carbon: $1599-1699
Regular: $1349-1449
PART # MODEL SIZE COLOR
92-157-0000 4 SEASON 1000 15 METALLIC RED
92-157-0001 4 SEASON 1000 17 METALLIC RED
92-157-0002 4 SEASON 1000 19 METALLIC RED
92-157-0003 4 SEASON 1000 21 METALLIC RED
92-157-0004 4 SEASON 1000 - Carbon Fork 15 METALLIC RED
92-157-0005 4 SEASON 1000 - Carbon Fork 17 METALLIC RED
92-157-0006 4 SEASON 1000 - Carbon Fork 19 METALLIC RED
92-157-0007 4 SEASON 1000 - Carbon Fork 21 METALLIC RED
92-157-0008 4 SEASON 1000 - Manitou Fork 15 METALLIC RED
92-157-0009 4 SEASON 1000 - Manitou Fork 17 METALLIC RED
92-157-0010 4 SEASON 1000 - Manitou Fork 19 METALLIC RED
92-157-0011 4 SEASON 1000 - Manitou Fork 21 METALLIC RED
BIKE SPECS
Frame 6061 Aluminum w/Custom Formed T/T & D/T, 1.5 Tapered
H/T, Replaceable Derailleur Hanger 12x197mm, Internal Cable
Routing
Fork Aluminum Straight Blade, 1,5 Taper, 15mm x 150 Thru-Axle or
Manitou Mastodon Pro 100mm or Carbon Fork Option
Headset Threadless 1-1/8~1.5 Tapered, Zero Stack
Rims Aluminum 80mm w/Rectangular holes, 26x32H
Hub, Front KT Aluminum Disc, Forged, Sealed Bearing, 15mm Thru-Axle
15x150
Hub, Rear Powerway Aluminum Disc, Forged, Sealed Bearing, Cassette,
12x197 Thru-Axle
Tires Vee Avalanche, 26 x 4.8”, 120TPI, Folding
Spokes 14G Black Stainless, 32x32
Derailleur, Rear Shimano Deore RD-M6100
Shifters Shimano Deore SL-M6100, Right Only, I-Spec EV
Chain Shimano CN-M6100
Crankset Samox 2-pc Forged, 30T, Narrow Wide, S:170, M-XL:175
BB Outboard Cartridge Bearing
Freewheel / Cassette Shimano CS-M6100, 10-51T, 12-Speed
Seatpost Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel
Adjust, 31.6mm
Saddle KHS Sport Dual Density Padding w/Handle
Handlebar Aluminum 35mm Riser, 760 x 15mm
Stem Aluminum 3D Forged, Threadless 4-bolt, 35mm
Grips Q2 Sport Lock-on
Brake Levers Shimano M4100, I-Spec EV
Brakes Shimano MT410 Hydraulic Disc, 180/160mm Rotors, Wave ‘12’
Frame Size
